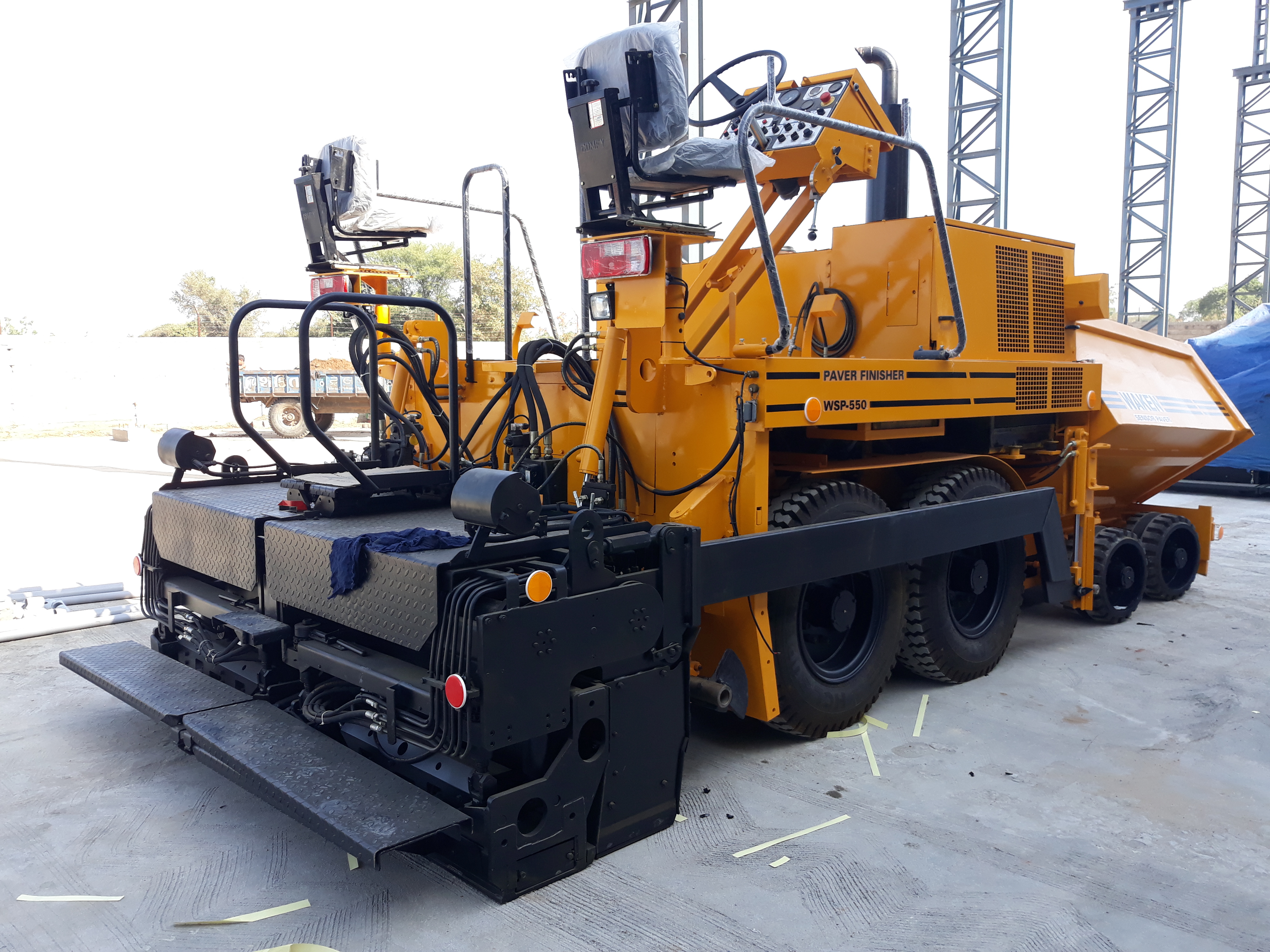

Introduction to Mechanical Paver With Hydraulic Drive & Conveyor System
Mechanical Paver With Hydraulic Drive & Conveyor System delivers uniform paving for highways, city roads, and industrial yards. A robust hydraulic transmission powers track or wheel movement, while synchronized conveyors and augers feed material evenly across the screed. Consistent mat thickness, superior surface finish, and reduced wastage make it ideal for contractors working under NHAI, PWD, and municipal projects. Indian jobsite realities—variable aggregates, tight timelines, and hot climates—are addressed through efficient cooling, reliable hydraulics, and serviceable components. Explore more road construction solutions on our partner site.
Working Principle and Process Flow of Mechanical Paver With Hydraulic Drive & Conveyor System
Hot asphalt mix is loaded into the hopper. Dual hydraulic conveyors pull material toward the center, where twin augers distribute it uniformly ahead of the screed. The hydrostatic travel drive propels the paver at precise paving speeds, controlled from an operator console with grade and slope inputs. The screed heats, floats, and vibrates to pre-compact the mat while thickness is maintained by sensors. Edge tamper and end gates shape boundaries. Final compaction is completed by rollers following behind. For specifications, visit Waken Multitech resources.
Types of Mechanical Paver With Hydraulic Drive & Conveyor System
- Wheel-mounted paver for urban projects, offering faster relocation, lower ground pressure, and economical operation for municipal and contractor fleets.
- Tracked paver for highways requiring superior traction, steady crawl speeds, and stable mat quality on gradients and soft base conditions.
- Hydraulic drive with variable displacement pumps providing efficient torque, smooth acceleration, and reduced fuel consumption across diverse Indian climatic conditions.
- Mechanical paver with fixed screed and basic controls, suitable for compact sites, lower budgets, and straightforward maintenance by local technicians.
- High-capacity conveyor and auger configuration for dense bituminous macadam, ensuring reliable feeding, minimal segregation, and uniform laying at wider widths.
Key Features and Specifications of Mechanical Paver With Hydraulic Drive & Conveyor System
- Paving width up to 5.5–7.5 metres with extension screeds; thickness adjustable from 10–300 mm.
- Hydrostatic travel drive enabling 0–18 m/min paving speed; micro-adjustable feed controls for consistent material flow.
- High-wear conveyor chains and auger flights with replaceable liners; centralized lubrication points to extend service intervals.
- Electronic grade and slope controllers; vibration frequency control for pre-compaction and improved mat smoothness.
- Diesel engine meeting CPCB IV+ norms with heavy-duty cooling; low-noise canopy and ergonomic operator platform.
Applications of Mechanical Paver With Hydraulic Drive & Conveyor System
- National and state highway construction where uniform layer thickness and ride quality are critical; hydraulic conveyors ensure steady feeding, while tracked or wheeled mobility supports continuous paving alongside synchronized roller trains for timely compaction and smoothness.
- Urban road rehabilitation and overlays requiring minimal disruption; precise hydrostatic speed control enables tight approaches near utilities, manholes, and intersections, delivering neat edges, consistent mat density, and improved service life for busy corridors.
- Industrial park, port, and airport service roads where durability and compliance matter; heated screed promotes compaction, reducing permeability and rutting, while auger distribution limits segregation, meeting quality standards across mixed traffic conditions.
- Rural PMGSY links and township streets with budget constraints; mechanical paver reliability lowers lifecycle costs, while standardized spares and training simplify upkeep for local teams, ensuring safer surfaces and predictable project timelines.
Benefits of Using Mechanical Paver With Hydraulic Drive & Conveyor System
- Higher ROI through reduced fuel per tonne-laid, minimal material segregation, and fewer rework passes; hydraulic drives sustain optimal speed, protecting screed performance and delivering smoother finishes that lower subsequent rolling effort and long-term maintenance budgets.
- Consistent mat thickness and texture via smart feed controls, heated screed, and sensor inputs; quality improvements reduce permeability, extend pavement life, and satisfy inspection benchmarks for highways, industrial roads, and municipal works.
- Improved productivity with faster setup, controlled travel speeds, and uniform material distribution; crews achieve target outputs per shift while reducing manual interventions, leading to safer operations and predictable jobsite scheduling.
- Scalable configurations for varying widths, materials, and budgets; compatibility with common roller fleets and tack standards simplifies deployment, ensuring compliance with tender specifications and consistent results across diverse Indian climates and aggregates.
Top Manufacturers and Suppliers in India
India hosts a wide base of mechanical paver manufacturers and channel partners serving highways, municipal bodies, and contractors. Offerings typically include hydrostatic drives, conveyor–auger feed systems, heated screeds, and basic grade controls. Vendors differentiate on paving width options, engine emission compliance, wear-part availability, and after-sales reach. Many suppliers maintain regional service teams and stock common consumables such as screed plates, chains, and bearings. Buyers should compare lifecycle costs, training support, and warranty coverage alongside quoted capacity. Reference projects, spare delivery timelines, and calibration assistance are helpful indicators of reliability. Finance, lease, or refurbishment programs may also be available through local distributors.
Maintenance and Safety Tips
- Inspect conveyors, augers, and screed daily; check chain tension, wear, leaks, and fasteners.
- Clean hopper, deck, and screed plates after shifts; lubricate points per manufacturer schedule.
- Verify grade and slope sensors; calibrate feed controls to prevent overfilling and segregation.
- Provide PPE, heat-awareness training, and safe work zones; enforce lockout during maintenance.
- Stock critical spares—chains, bearings, sensors—and store manuals; record service history and downtime.
