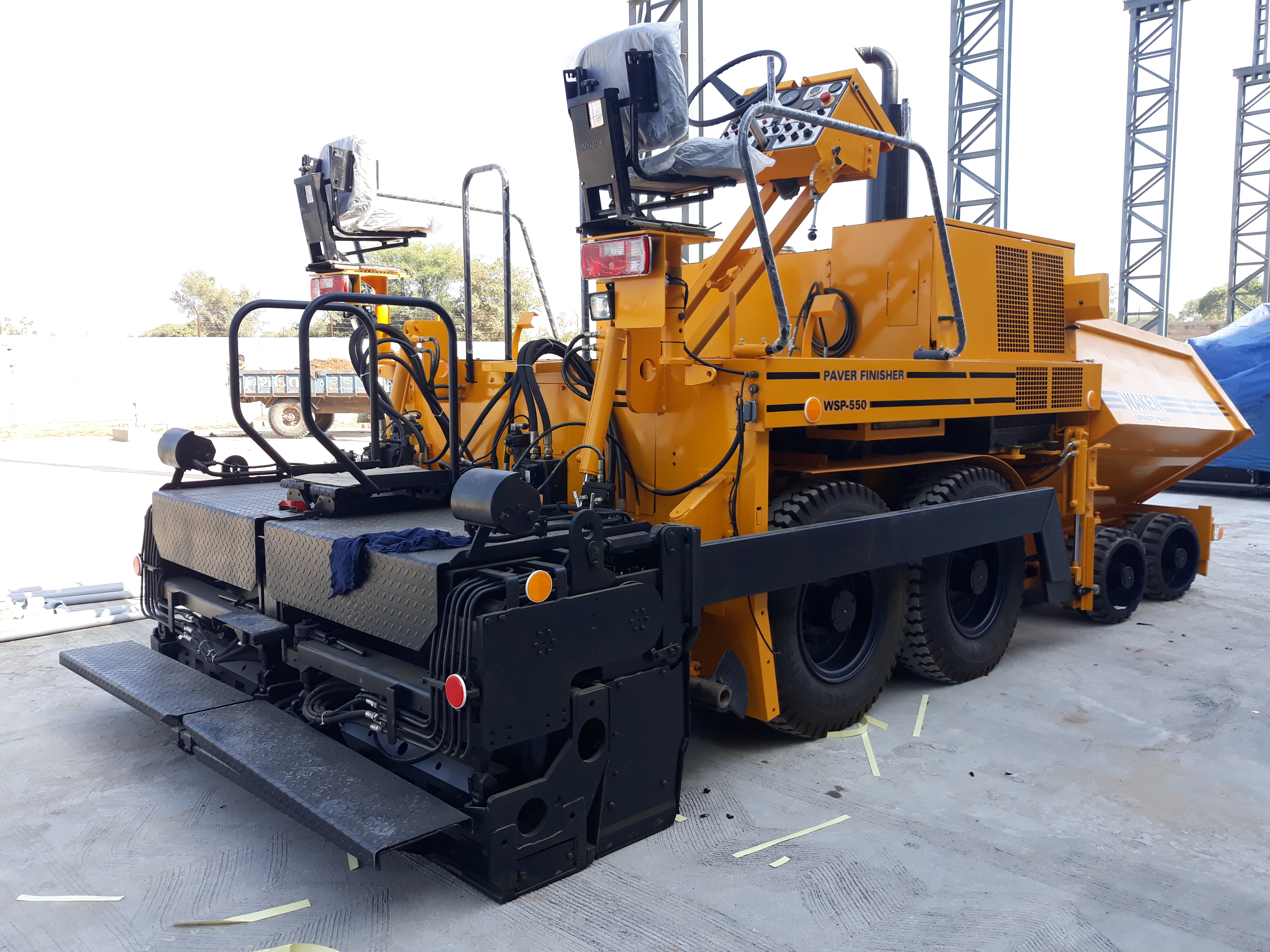

Introduction to Sensor Paver Finisher
A sensor paver finisher is a road construction machine that spreads, levels, and compacts hot mix asphalt with automated accuracy. Using ultrasonic and slope sensors, it maintains constant mat thickness and smoothness across varying site conditions. Contractors in India prefer sensor pavers for highways, urban corridors, industrial parks, and airport taxiways because they deliver uniform density with faster project turnaround. Modern models feature hydrostatic drives, auger flow control, and heated screeds for dependable finishing quality. Learn more on our technical resources page to evaluate specifications, productivity ranges, and deployment best practices.
Working Principle and Process Flow of Sensor Paver Finisher
Material from the tipper is discharged into the hopper, where twin conveyors feed it to the augers. Sonic sensors and slope controllers continuously monitor level and crown, adjusting tow-point hydraulics to keep the screed parallel. The augers distribute mix evenly across the paving width, preventing segregation and cold spots. The heated, vibratory screed compacts and textures the mat while automatic grade controls maintain target thickness. Operators manage speed via hydrostatic drives to match delivery, ensuring smooth transitions and joints. For selection guidance and operating checklists, visit our knowledge hub before mobilizing to site.
Types of Sensor Paver Finisher
- Hydrostatic sensor paver finisher for national highways; ideal for long, uninterrupted stretches requiring consistent speed and high productivity.
- Wheeled sensor paver finisher suited to urban corridors; faster relocation, lower ground disturbance, and efficient maneuvering around utilities.
- Tracked sensor paver finisher for industrial parks and airports; superior traction, gradeability, and stability on challenging subbase conditions.
- Compact sensor paver finisher for city overlays; narrow width options, quick setup, and minimal traffic disruption during night works.
- High-compaction screed sensor paver finisher; enhanced vibration, uniform heating, and better density for premium surfaces and heavy traffic.
Key Features and Specifications of Sensor Paver Finisher
- Paving width adjustable 2.5–9.0 m with hydraulically extendable screed and bolt-on extensions.
- Automatic grade and slope control within ±1.5 mm tolerance for superior ride quality and smoothness.
- Fuel-efficient, BS Stage IV compliant diesel engine with heavy-duty cooling for Indian ambient conditions.
- Intuitive control console, proportional auger and conveyor speeds, and memory presets for repeatable results.
- Centralized lubrication, onboard diagnostics, and nationwide spares support minimize downtime and lifecycle costs.
Applications of Sensor Paver Finisher
- Highway mainline paving where consistent mat thickness, tight longitudinal joints, and high output matter; integrates with transfer vehicles and rollers to deliver ride quality targets under demanding NHAI performance specifications.
- Urban arterial resurfacing requiring night shifts; compact configurations allow safe working alongside traffic, delivering smooth overlays across intersections, utility cut restorations, bus bays, and approaches with minimal disruption to commuters and businesses.
- Airport taxiways and service roads demanding uniform density and tight tolerances; sensor-guided screed control and thermal management help achieve superior ride indices, reducing risk of foreign object damage and costly rework later.
- Industrial park internal roads and heavy-duty pavements; tracked traction and high-compaction screeds produce durable surfaces that resist rutting under forklift, tipper, and articulated truck loads across varied subgrade conditions.
Benefits of Using Sensor Paver Finisher
- Improves ROI through faster cycle times, lower rework, and longer pavement life; intelligent sensors reduce material overuse while automated controls help teams hit smoothness and density targets consistently across diverse Indian climates.
- Delivers superior finish quality with precise grade and slope management; uniform heating and vibration minimize segregation and shoving, producing ride comfort and durability that reduce warranty claims and user complaints over time.
- Cuts project timelines by optimizing paving speed, logistics, and joint transitions; hydrostatic drives and proportional controls help synchronize with trucks and rollers, reducing stoppages, idling, and thermal differentials during challenging traffic windows.
- Scales from city overlays to highway lanes with modular screed extensions and control presets; safety interlocks, guardings, and operator visibility features support compliance with site audit requirements and contractor EHS frameworks.
Top Manufacturers and Suppliers in India
India’s market for sensor paver finishers includes multinational brands and specialized domestic manufacturers offering wheeled and tracked variants. Common specifications include hydrostatic drives, electronic grade and slope controls, heated vibratory screeds, and extendable paving widths suitable for highways and urban overlays. Suppliers typically provide commissioning, operator training, and access to regional service centers, with stocked spares like sensors, auger flights, and screed plates. Buyers often evaluate engine compliance, electronics reliability, after-sales network, and lifecycle costs alongside productivity metrics. Rental companies and EPC contractors maintain mixed fleets, so compatibility with standard transport widths and quick setup is valued. Lead times can vary seasonally; confirming delivery windows and warranty terms early helps planning.
Maintenance and Safety Tips
- Inspect sensors, tow arms, and screed plates daily for wear, looseness, and alignment issues.
- Clean conveyors, augers, and screed heating zones; lubricate per OEM schedule to prevent failures.
- Verify grade and slope calibration with reference lines before every shift and after transport.
- Provide operator refresher training on emergency stops, guarding, reversing alarms, and hot-surface hazards.
- Stock critical spares—sensors, fuses, hoses—and store machines under cover to prevent corrosion.
